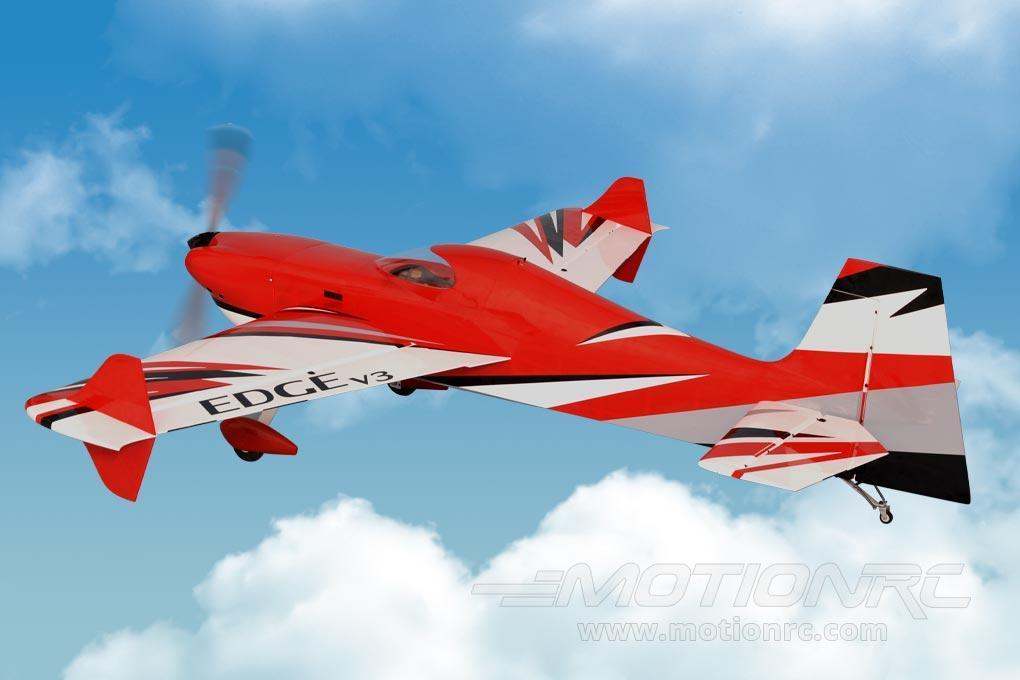

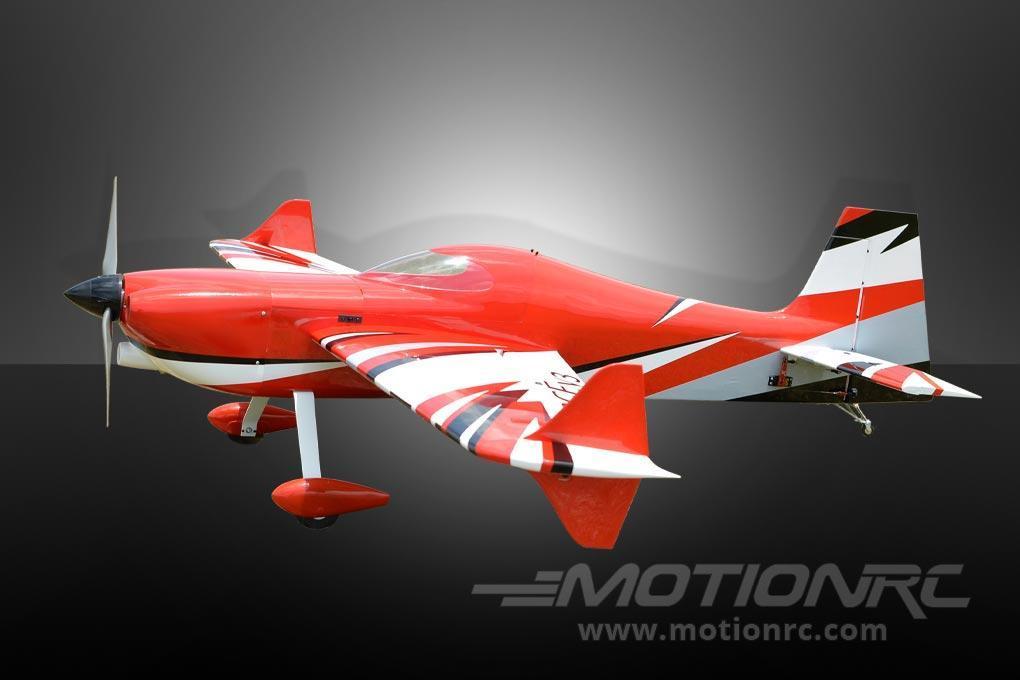

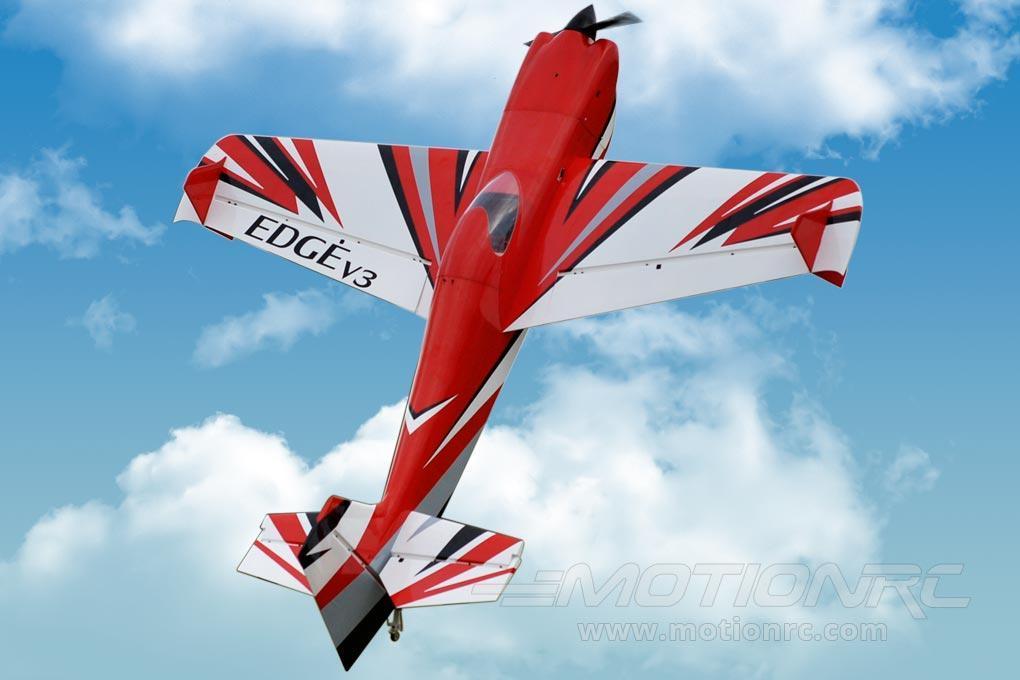

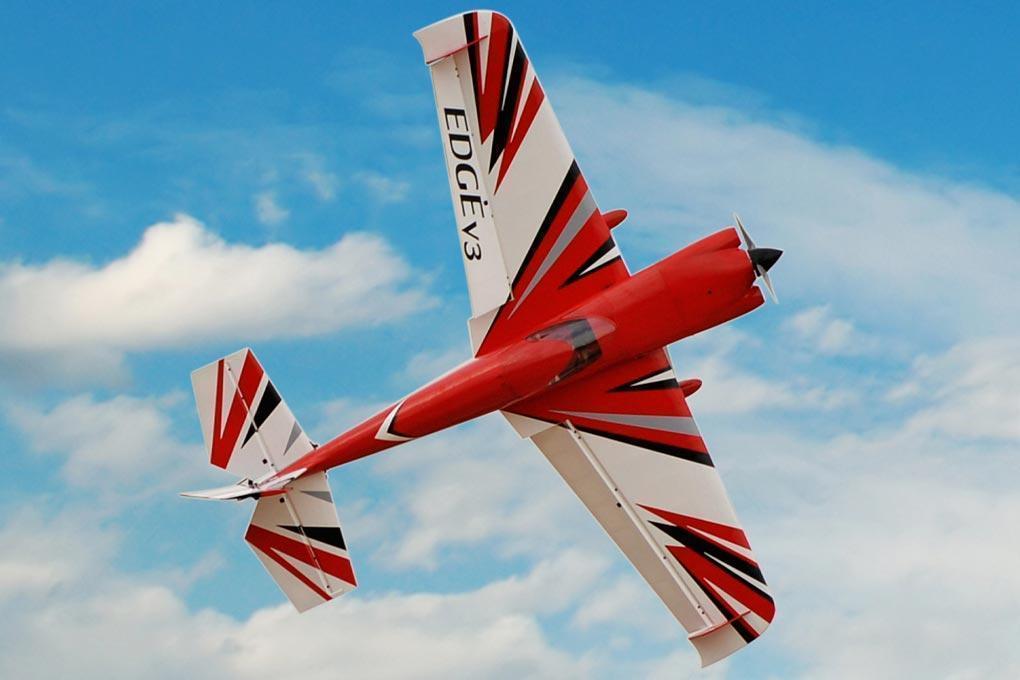

Edge 540 V3 2000mm (78.74") Wingspan from Black Horse - Balsa Wood ARF - BHED000
The Zivko Edge 540 manufactured by Zivko Aeronautics is a highly aerobatic aircraft. Capable of a 420 degree per second roll rate and a 3,700 foot per minute climb rate, it has been flown to victory on the international Unlimited aerobatics circuit several times since the mid-1990s. A tandem-seat version is sold as the Edge 540T.
The Zivko Edge 540 is the most common aircraft used in the Red Bull Air Race World Series.
Our model is scaled to approximately 1:3.7 and attention has been given to providing a realistic appearance with outstanding flight characteristics. The model was designed for electric power but can also be flown using a matched pair of internal combustion engines of about 30-35cc displacement.
Visit the Official Black Horse Edge 540 V3 2000mm Discussion Thread on HobbySquawk.com for additional photos, videos, reviews, and customer Q&A.
Features:
- High level of prefabrication right out of the box

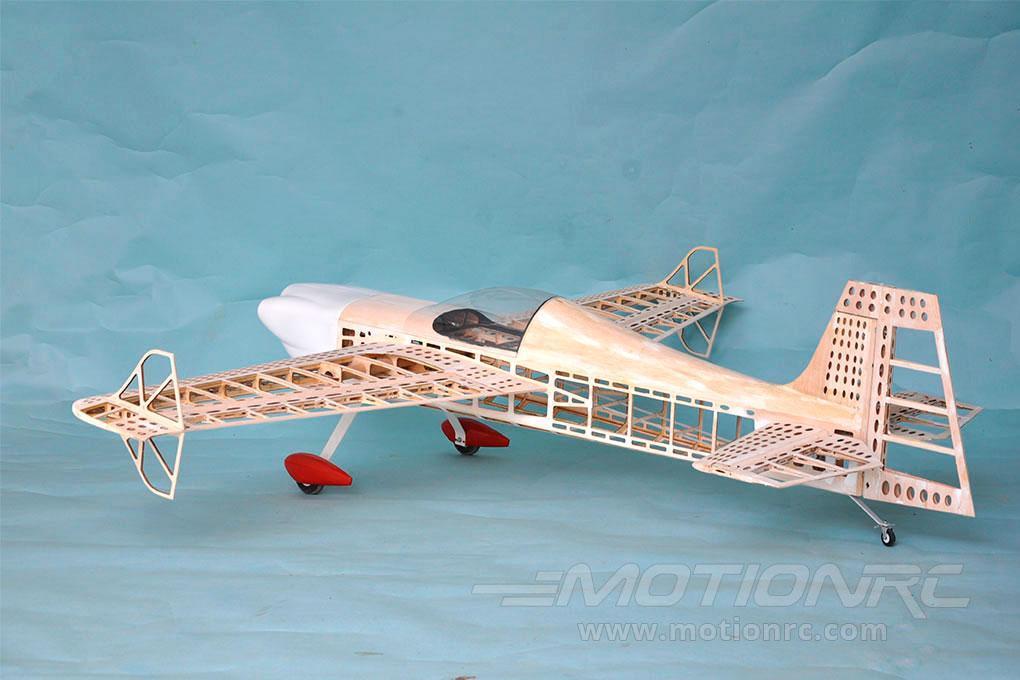

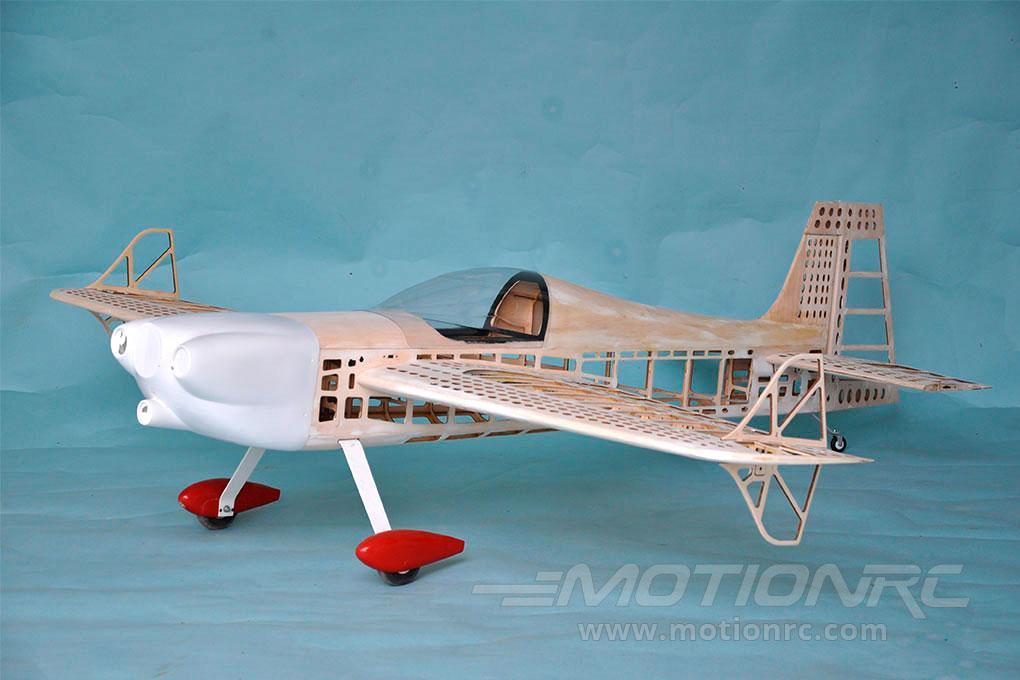

- Lightweight, strong, and fully sheeted laser cut balsa and plywood construction
- Covered in high quality Oracover

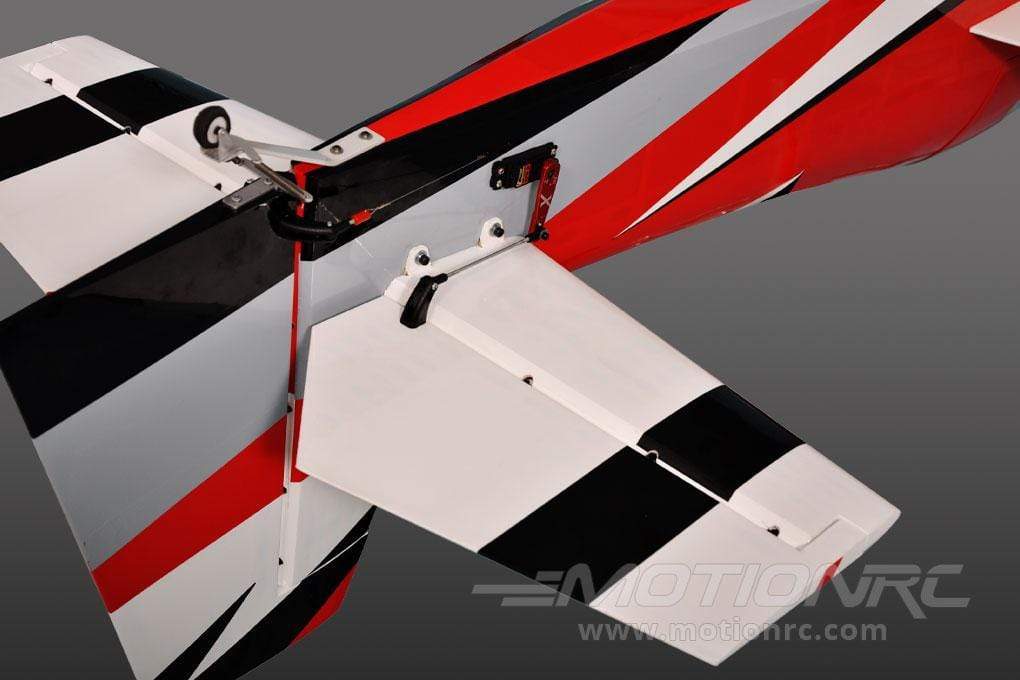

- Recessed hinges on all control surfaces
- Large easy access fuel tank/battery/servo access hatches with sprung loaded latches

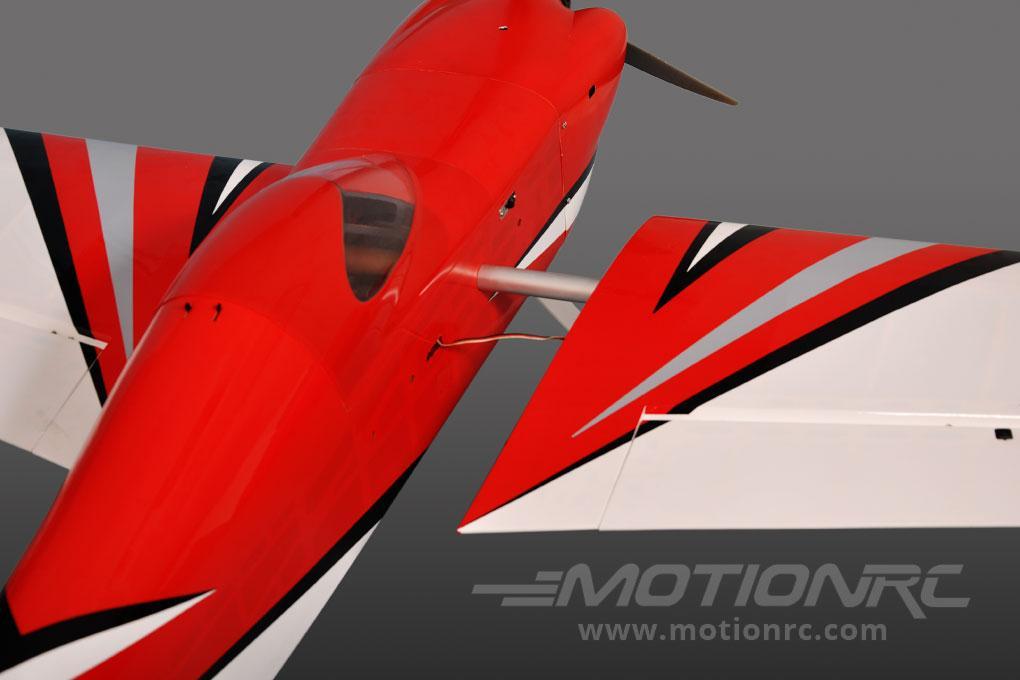

- Painted and detailed cockpit, pilot and interior included
- Fiberglass twinned control horns with ball link connector
- Pull-Pull control system on the rudder for precision control and authority
- comprehensive control and fitting accessories included
- Two-piece, plug-in wings simplify transportation and assembly.

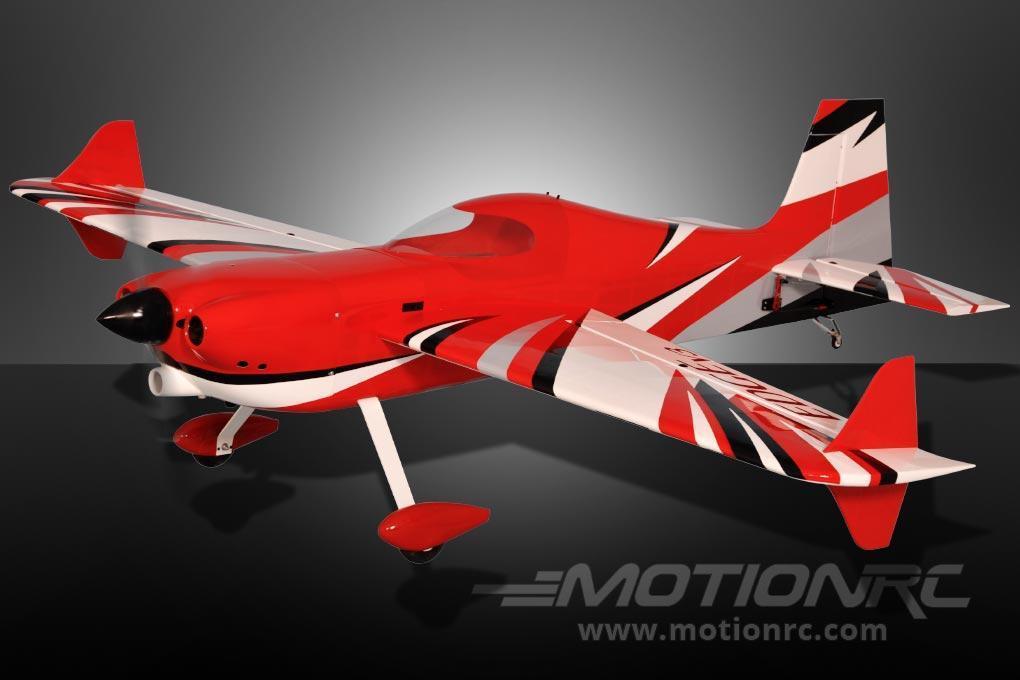

- Fiberglass cowl and landing gear covers/pants
- Mounts for both electric and gas power options included
- Fully illustrated instruction manual included and also available for download (see tab above)
Includes:
- Black Horse Edge 540 V3 2000mm (78.74") Wingspan - ARF
Requires (Electric):
- 6 Channel radio - select a minimum 6 channel radio from our Radio Collection
- 6 Channel receiver - select a minimum 6 channel receiver from our Receiver Collection
- 2300-3300 Watt Brushless Outrunner Motor - we recommend the Admiral GP26 6330-245kV Brushless Motor
- 60-100 Amp Brushless ESC - we recommend ZTW Gecko 120A ESC OPTO High Voltage Brushless ESC
- 8-18 Amp UBEC - we recommend ZTW 18A BEC / UBEC
- 5x 45g standard servos - we recommend HS-625MG
- For 8S setup TWO 46 Cell 14.8V 5000 mAh LiPo Batteries with EC5 connector in series - we recommend TWO Admiral Pro 5000mAh 4S 14.8V 60C LiPo Batteries with EC5 Connector
- For 10S setup ONE 6 Cell 22.2V 5000 mAh and ONE 4 Cell 5000 mAh LiPo Batteries with EC5 connector in series - we recommend ONE Admiral 5000mAh 6S 22.2V 50C LiPo Battery with EC5 Connector AND ONE Admiral Pro 5000mAh 4S 14.8V 60C LiPo Battery with EC5 Connector
- 2 to 1 EC5 series adapter - we recommend Admiral EC5 2 to 1 Series Adapter
- Electric propeller 8S - we recommend the APC 19x10 Thin Electric Propeller
- Electric propeller 10S - we recommend the APC 17x10 Thin Electric Propeller
- 6 Cell compatible battery charger - select a minimum 6 cell (6S) charger from our Charger Collection
Requires (Gas):
- Engine: 30-35cc 2-stroke (NGH GT35 recommended). 38-42cc 4-stroke (NGH GF38 recommended)
- Gas Propeller: 18x10 - 20x8 (2 Stroke and 4 Stroke)
Black Horse ARF models are constructed out of balsa wood and plywood. These are not foam models. The assembly of balsa wood ARF aircraft requires basic model building skills including the installation of servos, ESC, and motor (or gas engine).
